Construction Carbon Composition Resistor are among the earliest types of resistors used in electronic circuits. Though their use has declined with the rise of more stable and precise resistor types, they remain significant in certain applications, especially where high energy pulses and rugged operation are essential. In this article, we will explore the detailed construction of carbon composition resistors, the materials involved, their design methodology, and their unique advantages.
1. Introduction to Construction Carbon Composition Resistor
Carbon composition resistors are fixed resistors made from a solid mixture of carbon powder and insulating binder. They were widely used in analog electronics until the 1960s and 1970s. Today, they are primarily found in specialized applications like surge protection, military electronics, and vintage restorations.
Key features include:
- High energy handling capacity
- Good high-frequency performance
- Resistance to mechanical shock and vibration
2. Materials Used in Construction Carbon Composition Resistor
The materials used in carbon composition resistors are crucial to their function and performance. These include:
2.1 Carbon Powder
The main conductive element in the resistor. The amount of carbon determines the resistance value—more carbon means lower resistance, while less carbon results in higher resistance.
2.2 Binder (Ceramic or Resin)
This non-conductive material binds the carbon particles together and provides mechanical strength. Epoxy resin is a common choice, though earlier versions used phenolic resins.
2.3 Construction Carbon Composition Resistor Protective Coating
A ceramic or enamel coating protects the resistor core from environmental conditions like humidity, oxidation, and heat.
2.4 Metal End Caps and Leads
Metal caps are attached to both ends of the carbon core, and tinned copper leads are soldered to these caps for circuit integration.
2.5 Color Bands (Resistor Code)
Painted color bands represent the resistance value, tolerance, and sometimes reliability or failure rates.
3. Construction Carbon Composition Resistor Process Step-by-Step
The construction carbon composition resistor involves a series of well-defined manufacturing steps:
3.1 Mixing
Carbon powder and a non-conductive binder are thoroughly mixed in precise ratios. The ratio determines the desired resistance value.
3.2 Molding
The mixture is pressed into cylindrical molds under high pressure to form a solid resistive core.
3.3 Baking
The molded cores are baked at high temperatures to harden the mixture and create a durable resistive body.
3.4 Metal Cap Attachment
After cooling, metal caps are pressed or crimped onto each end of the cylinder, ensuring good electrical contact.
3.5 Lead Soldering
Tinned copper leads are soldered or welded onto the metal caps for connection to electronic circuits.
3.6 Construction Carbon Composition Resistor Coating
The resistor body is then coated with multiple layers of protective ceramic or resin to insulate and protect it from mechanical and chemical damage.
3.7 Marking
The final step involves applying colored bands to indicate resistance value, tolerance, and possibly failure rate, following international standards like IEC or EIA.

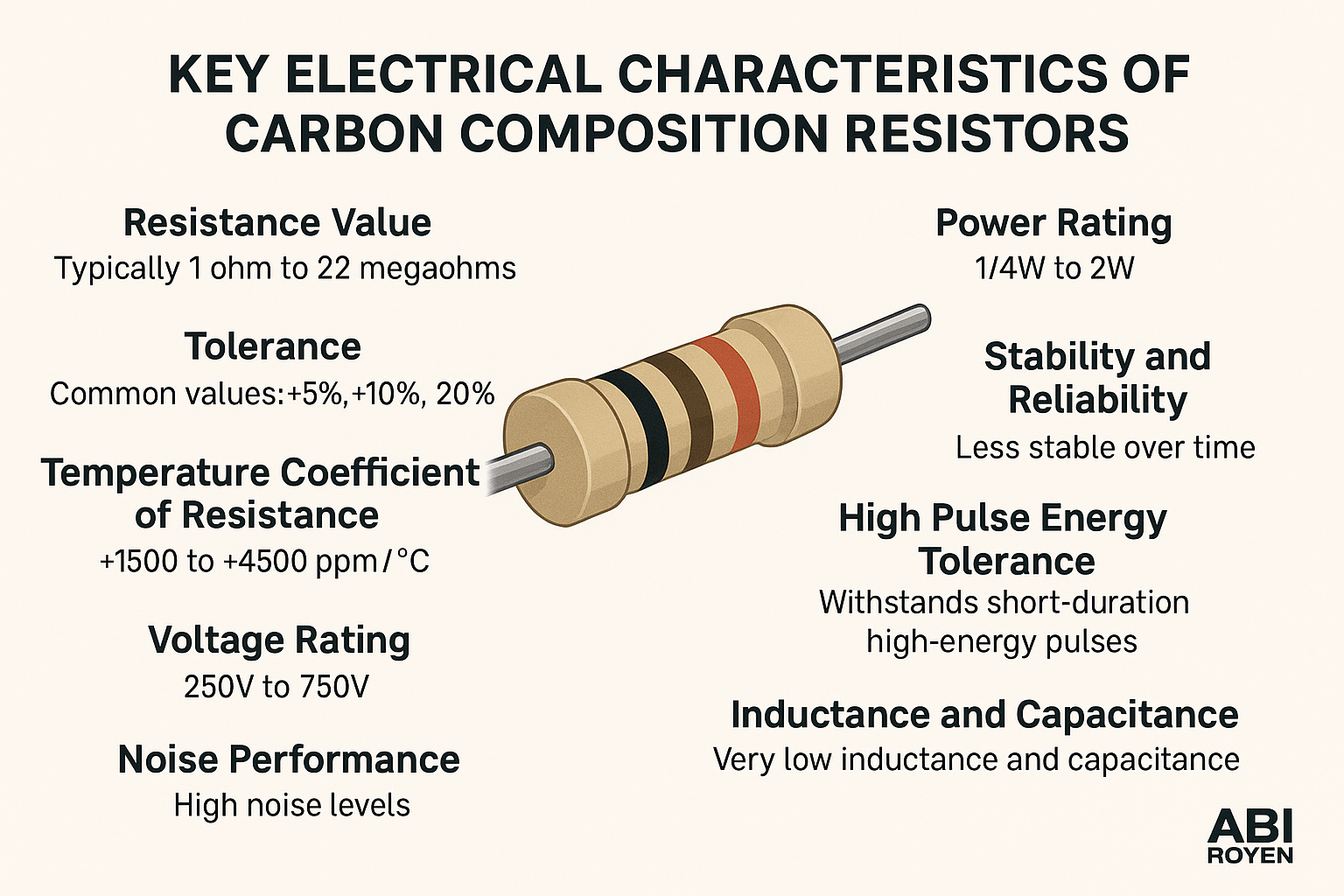

4. Electrical Characteristics
Carbon composition resistors are unique in their electrical behavior:
| Characteristic | Typical Range |
|---|---|
| Resistance Values | 1Ω to 22MΩ |
| Power Rating | 1/8W to 2W |
| Tolerance | ±5% to ±20% |
| Temperature Coefficient | -1500 to +2500 ppm/°C |
| Voltage Coefficient | Moderate (value changes with voltage) |
They are not suitable for high-precision circuits due to their relatively poor tolerance and high noise.
5. Applications of Carbon Composition Resistors
Despite being largely replaced in most modern electronics, carbon composition resistors are still used in specific contexts due to their unique benefits:
- Pulse and Surge Circuits: Excellent for absorbing energy spikes in surge protection systems.
- Vintage Electronics: Authentic component for repairing or building vintage radios, amplifiers, and military equipment.
- High Voltage Circuits: Capable of withstanding high voltages and short bursts of energy.
- RF and Audio Circuits: Suitable in circuits where inductance of wire-wound resistors would cause performance issues.
6. Advantages and Disadvantages
Advantages:
- High energy absorption
- Non-inductive design
- Mechanically robust
- Excellent for impulse loads
Disadvantages:
- Low precision
- High noise generation
- Large physical size
- Poor stability over time and temperature
7. Comparison Construction Carbon Composition Resistor with Other Resistor Types
| Feature | Carbon Composition | Carbon Film | Metal Film | Wire Wound |
|---|---|---|---|---|
| Precision | Low | Medium | High | High |
| Tolerance | ±5–20% | ±1–5% | ±0.1–2% | ±0.1–5% |
| Noise | High | Medium | Low | Low |
| Pulse Handling | Excellent | Good | Poor | Good |
| Cost | Medium | Low | Low | High |
Carbon composition resistors are not ideal for circuits requiring tight tolerances or low noise but excel in dynamic, rugged environments.
8. Environmental and Safety Considerations Construction Carbon Composition Resistor
Due to the presence of carbon and phenolic binders, these resistors can emit toxic fumes when burned. They are not considered environmentally friendly and should be handled with care during disposal or recycling.
9. Why Carbon Composition Resistors Are Still Used
While most manufacturers prefer metal or carbon film resistors for general use, carbon composition resistors are still produced by specialty manufacturers for defense, aerospace, and high-voltage applications. Their ability to withstand high energy without failure makes them indispensable in certain scenarios.
10. Conclusion of Construction Carbon Composition Resistor
The Construction Carbon Composition Resistor is a blend of material science and engineering design tailored for durability and performance in specific applications. Despite their age, these components continue to serve a niche but vital role in electronics, particularly where high pulse resistance and rugged construction are paramount.
For hobbyists, engineers, and restorers alike, understanding how carbon composition resistors are built helps in selecting the right component for the job, especially in high-voltage, vintage, or high-energy scenarios.
